With a footprint of 1 m² and a pressing cycle of less than 15 seconds, this pneumatic press is incredibly quick. The A406 cardboard and plastic baler of the third generation connects directly to an existing air supply for unmatched efficiency.
The A406 has a 1m² floor space footprint and compresses with 8 tonnes of force in less than 15 seconds during a pressing cycle.
The A406 has a 1m² floor space footprint and compresses with 8 tonnes of force in less than 15 seconds during a pressing cycle.
The A406 baler represents the third generation of Mil-tek pneumatic balers; its dual, double-cycling cylinders enhance the pressing cycle speed and force. Patented ECO-Drive technology distributes power to the pressing plate efficiently during the downward cycle and locks the pressing plate in position to further compact the material. On release, compressed air is used to return the pressing plate.
Operating on compressed air, the A406 is devoid of hydraulic lubricant and contains no inherent contamination risk.
The A406 is adaptable to compact plastic (225kg bales), cardboard (175kg bales), and other recyclable materials, and its pressing chamber is large enough to accommodate large crates and plastic bags. All Mil-tek machines come standard with EN16500 features, and the A406 has a safe and straightforward two-handed bale-out mechanism.

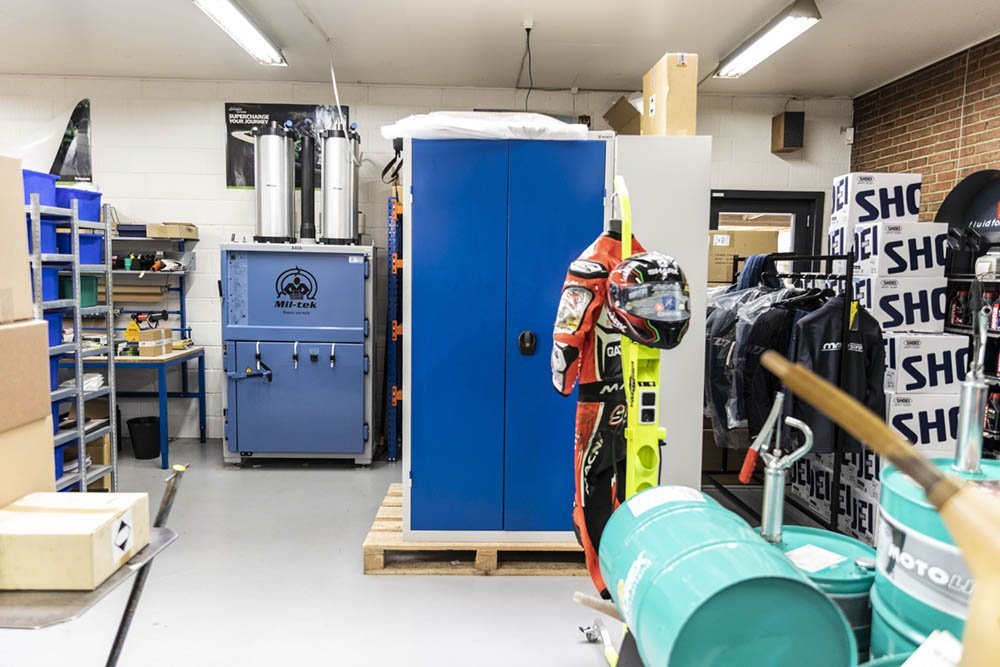

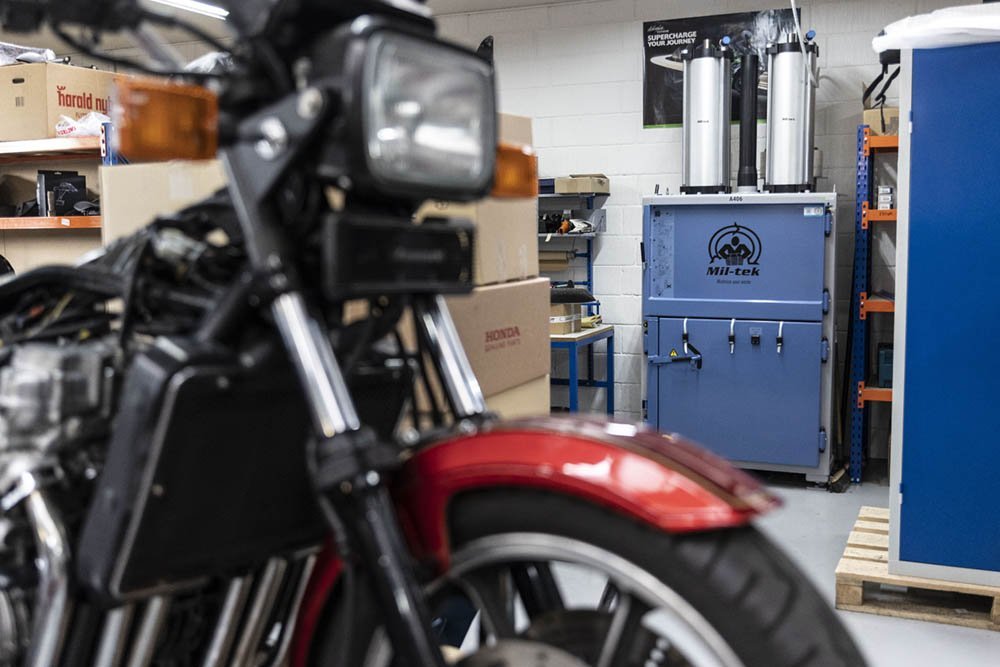

At Skjern Motor Cycles, maintaining a clean and organized store and workshop is of utmost importance.
In a hectic environment, it is crucial for the shop owner to ensure that his mechanics have ample space to work and that everything is positioned close to where it is needed.

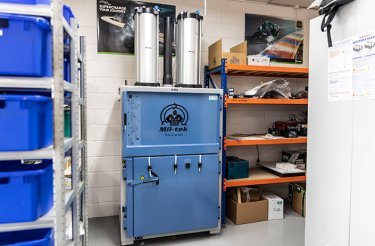

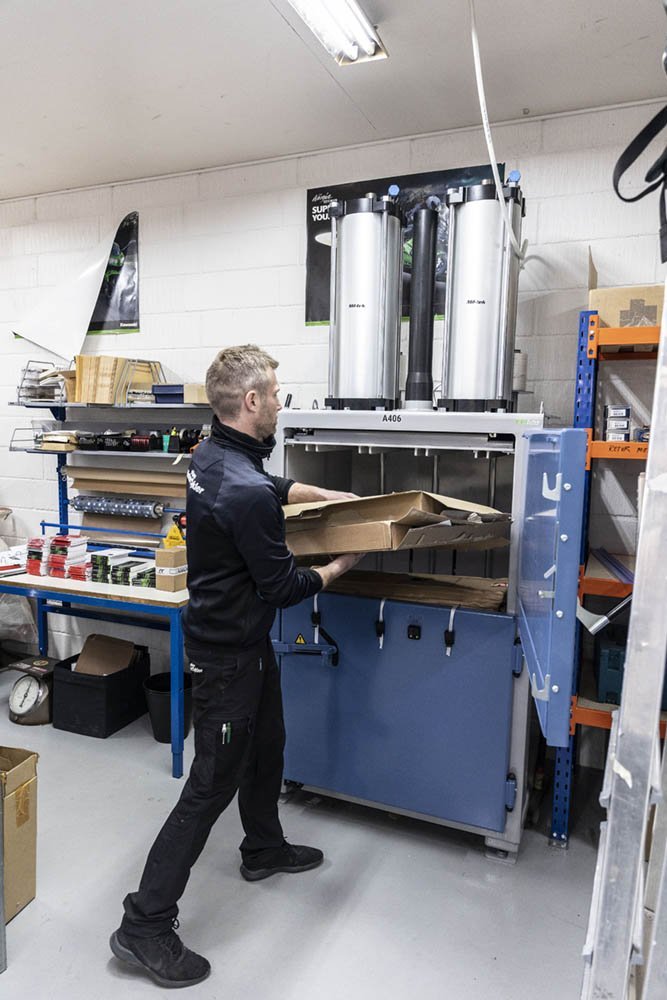

The cardboard baler A406 is now a permanent fixture in the workshop. It resolves multiple problems that posed a problem in the past.
Watch this video and learn more about efficiency in the workshop.
Cardboard Bale

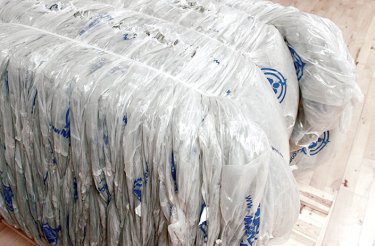

Plastic Bale
Pressing cycle
< 175 kg
< 225 kg
15-25 sec.
Height
760-880 mm
Width
890 mm
Depth
735 mm
Banding
13 mm (#999011)
Height
570 mm
Width
890 mm
Depth
700 mm
Height
2530 mm
Width
1090 mm
Depth
941 mm
Weight
675 kg
Noise Level
< 70 db (A)
Pressing force at 8 bars
8000 kg
Certifications
CE, EN16500, UKCA

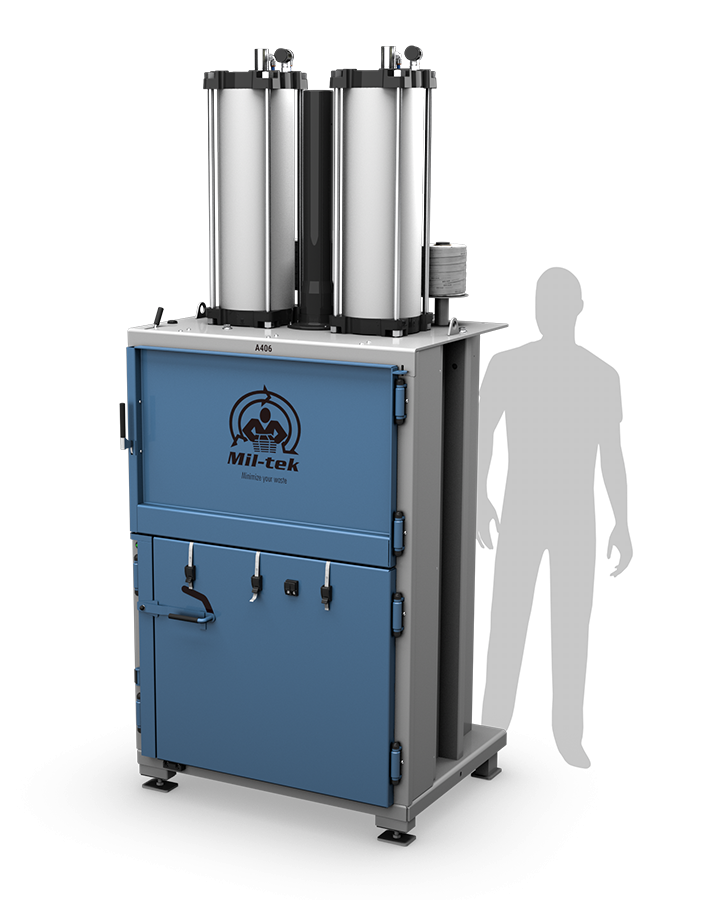

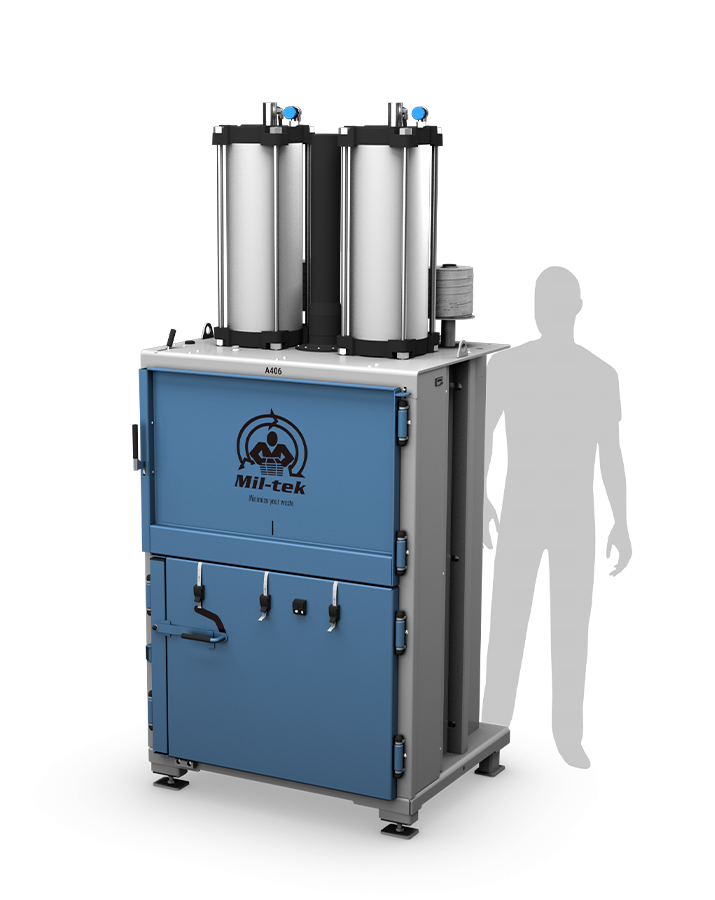

A406 Cardboard & Plastic Baler
This baler is available with dust extraction!
